APECS Pilot Line: Heterointegration Into Quasi-Monolithic Integration
Heterointegration towards quasi-monolithic integration

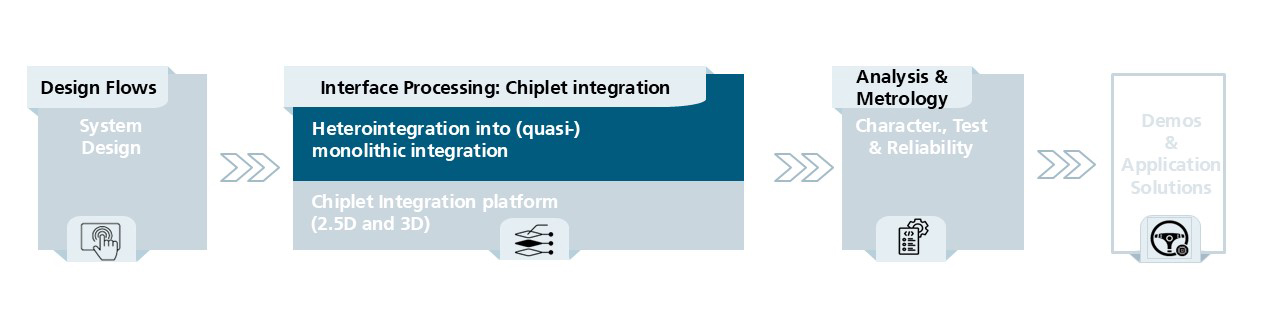

Advanced Packaging and Heterogeneous Integration for Electronic Components and Systems
Pocket wafer with placed chiplets
Fully populated pocket wafer after the passivation step (CVD)
3D printing of a demonstrator of quasi-monolithic integration with chiplet in pocket.
A key part of our contribution to APECS is the development of quasi-monolithic integration (QMI), which will set new standards in chiplet integration technology. The key strength of QMI lies in its ability to combine different materials and technologies in a highly integrated way to create an extremely high performance and reliable end product. In contrast to fully monolithic systems, QMI allows for greater flexibility and customization.
What is quasi-monolithic integration?

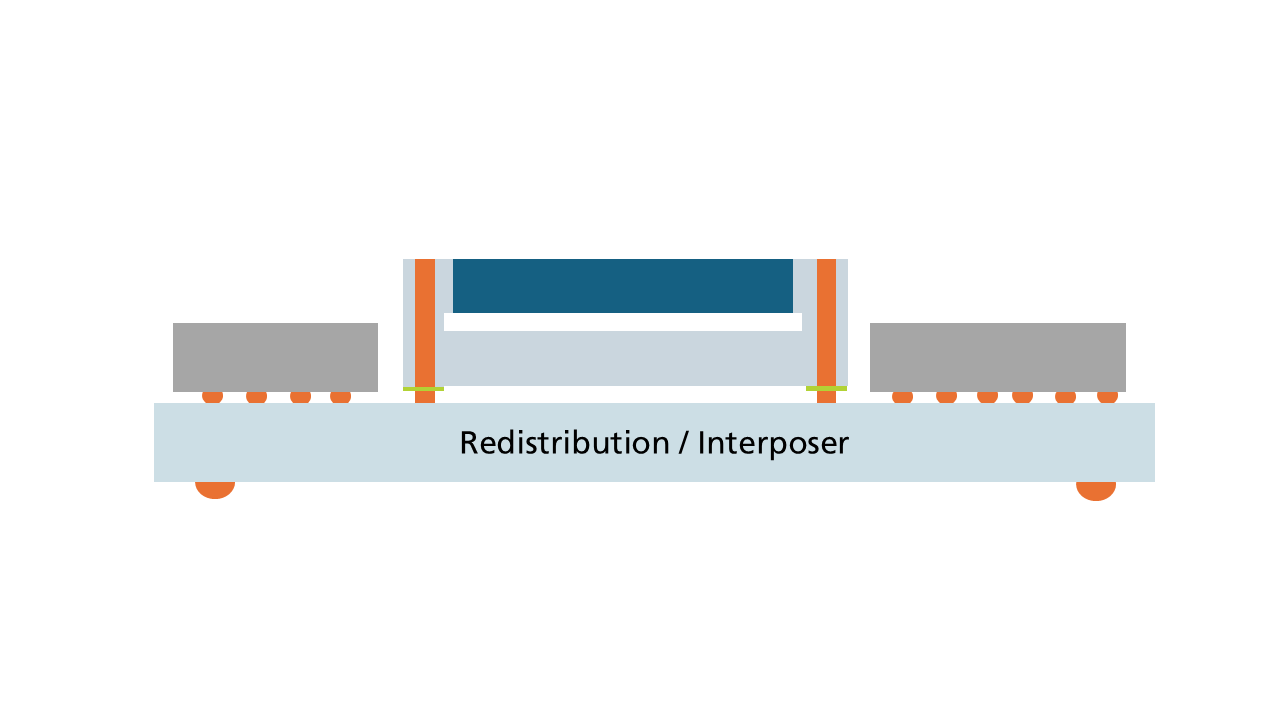

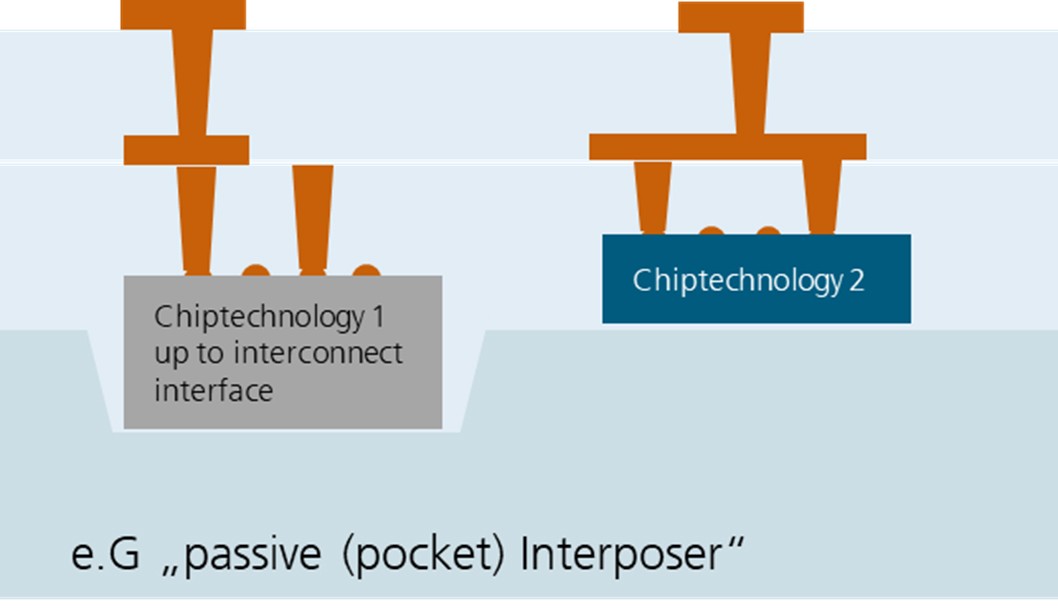

Quasi-monolithic integration refers to a technology in which different functional chiplets (CMOS, MEMS, non-silicon) are integrated into an almost monolithic system. In this technology, these integrated chiplets are arranged and connected with a common interconnect stack on an active or passive wafer substrate and then contacted within the front-end line.
This allows the highest contact densities to be achieved. This maximizes the benefits of each technology while minimizing the challenges of integration.
Advantages of QMI
- Performance: The tight integration of different elements significantly increases the performance of the system. Signal losses and delays are minimized, resulting in faster and more efficient data processing.
- Reliability and durability: QMI systems are characterized by increased reliability and longer service life, as mechanical failures are reduced due to the tight connection of the components.
- Compactness: QMI saves considerable space as the elements are integrated almost monolithically.
- Cost efficiency: The QMI combination of chiplets enables cost-efficient maximum integration with fast innovation cycles
These advantages predestine quasi-monolithic integration for innovations such as highly integrated SOC (systems-on-chip) for AI applications (sensor AI) as well as intelligent transceivers with high bandwidth.
