Li-Fi GigaDock®

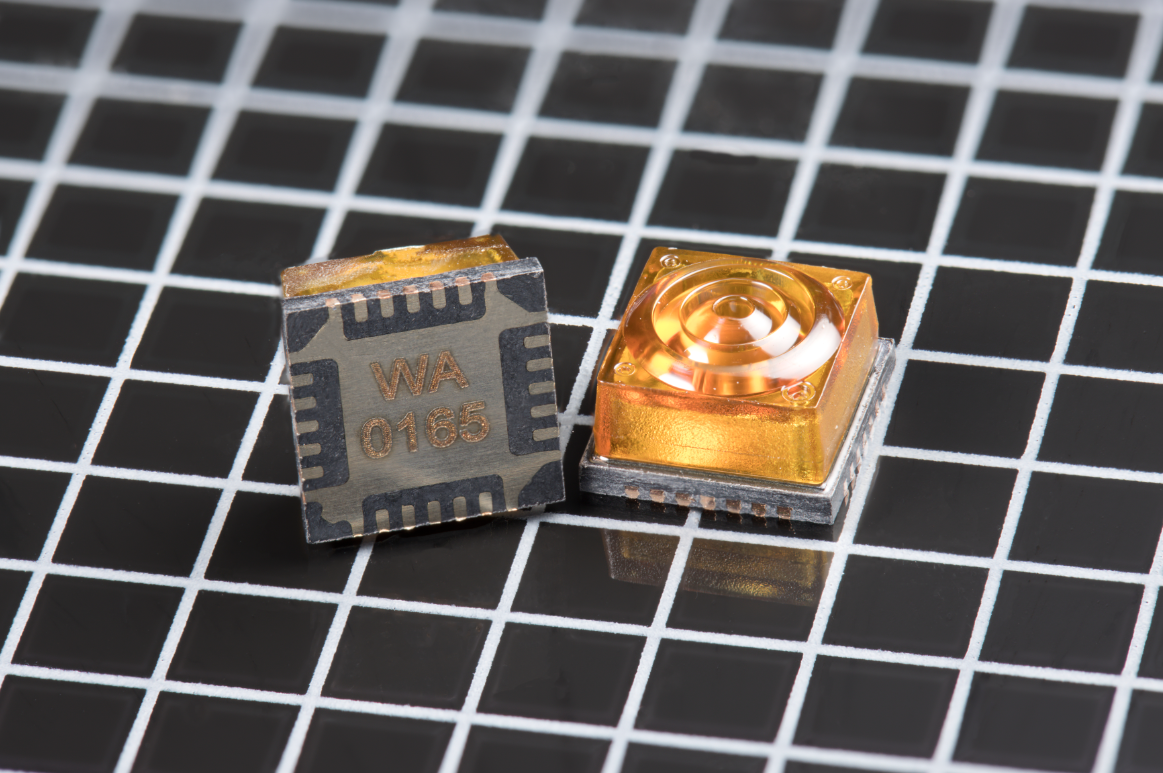

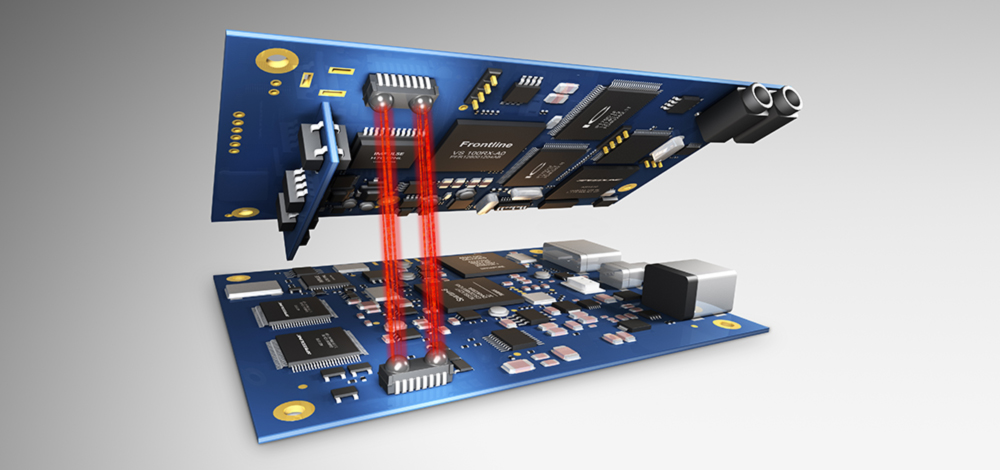

Li-Fi GigaDock® offers data transmission with light over short distances and high data rates. It is particularly suitable for industrial applications. In the context of Industry 4.0, in which ever greater amounts of data are being transmitted, the Li-Fi GigaDock® is suitable for transmission over short distances and a maximum data rate of 12.5 Gbps. Low latencies also enable use in applications with tough real-time requirements. GigaDock is ahighly integrated, minaturized component, which can be implemented in a standard SMD process.

Features

• Data rate up to 5 Gbps
• Bi-directional, full duplex
• Real-Time-Communication capability
• Electrical interface: differential, CML/LVDS like
• Range: >100 mm, Rotation: 360°
• Alignment: ±2mm@ 25mm range (@1 Gbps data rate)
• BER: <<10^-9

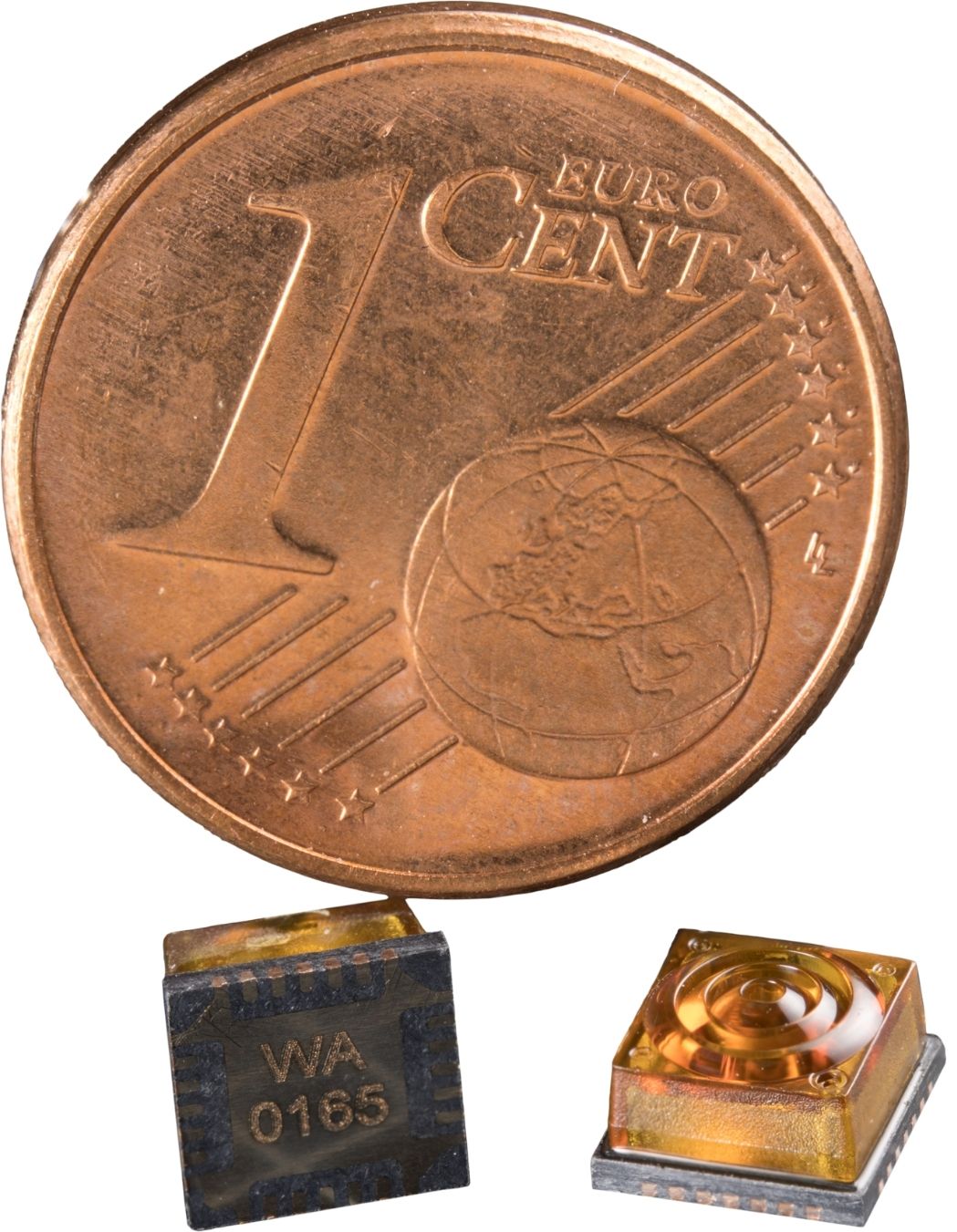

• Physical size (LxWxH): 5x5x2.9 mm with QFN like footprint
• Operation temperature: -40 to +85°C
• SMD solderable
• Power Supply: 3.3V or 2.5V
• Low power modi: automatic RX & manual TX power down
• Laser class 1
• Telcordia GR-468-Core qualified

Environmental qualification

• More than 80.000 hours under environmental stress testing without failure
• Tested according to Telcordia GR-468-Core issue 2
• Complying to military standard test procedures:
• MIL-STD-883E, Method 1004.7
• MIL-STD-883E, Method 2002.4
• MIL-STD-883E, Method 2007.3
• MIL-STD-883E, Method 1010.7
• MIL-STD-202G, Method 103B
• Laser class 1 compliant according to IEC 60825-1:2014

1 Gbps GigaDock® Evaluation Kit

The 1 Gbps Li-Fi GigaDock® Ethernet Evaluation Kit can be used to directly replace Gigabit Ethernet cables by an optical wireless data link.

The kit comprises:

• 2 optical wireless transceivers with Gigabit Ethernet connector onboard to easily connect to a Gigabit Ethernet compliant device
• 2 CAT5 cables
• 2 Power Supplies
• Documentation

5 Gbps GigaDock® Evaluation Kit

The 5 Gbps Li-Fi GigaDock® Evaluation Kit can be used to evaluate an optical wireless data link.

The kit comprises:

• 2 optical wireless transceivers with SMA connectors. SMA connectors provide 2x differential signals for TX (input) and RX (output)
• 8 SMA cables
• Documentation
• (also available as USB 3.0 EVK)

The GigaRotate Evaluation kit can be used to test optical data transmission between rotating parts up to 1500 RPM

Specifications:

• Distances: 0.5 mm to 30 mm
• Rotation up to 1500 RPM
• Compatible for data transfers with Profinet IO and IRT, EtherCat, EtherNet/IP, Powerlink
• Data connection: Gigabit Ethernet via M12 X-Coded
• Power supply: Power over Ethernet (PoE) or external 24V/DC via M8 connection
• Size: Ø 80 mm x 26.4 mm

The kit comprises:

• 2x Li-Fi GigaRotate modules
• 2x M12 to RJ45 connection cable for Ethernet connection
• 2x M8 connection cable for power connection
• 1x documentation
