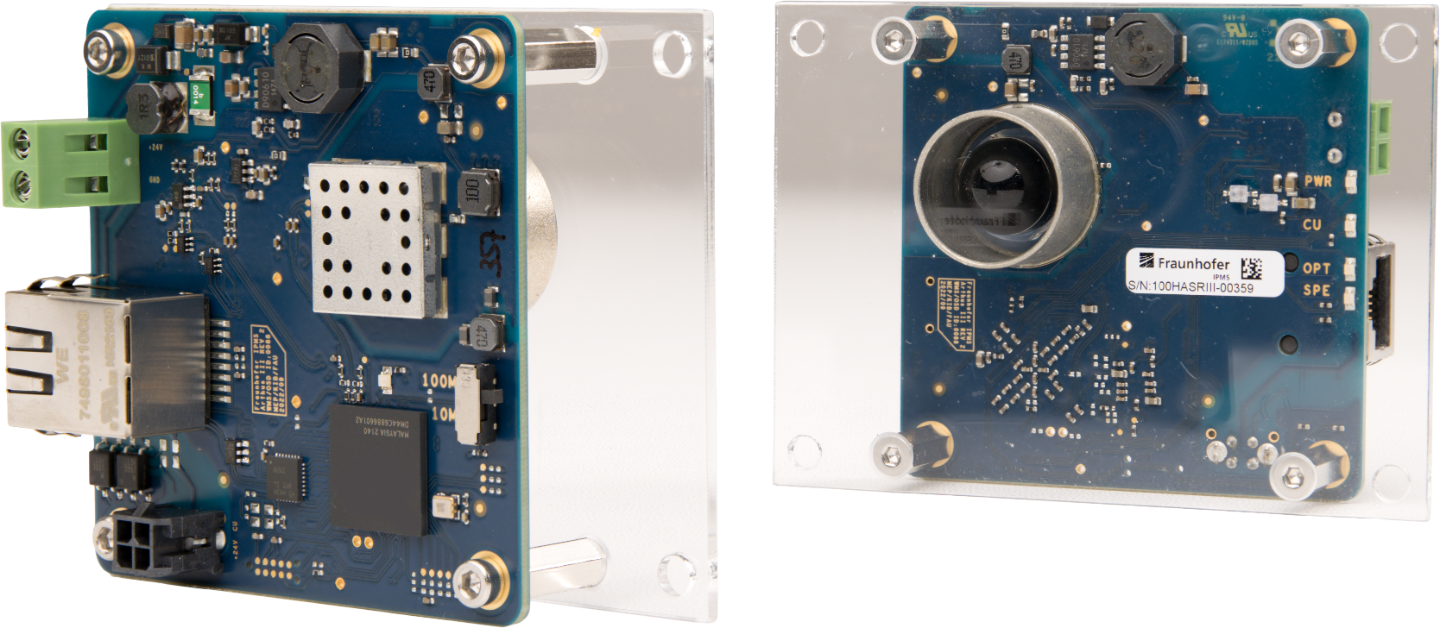

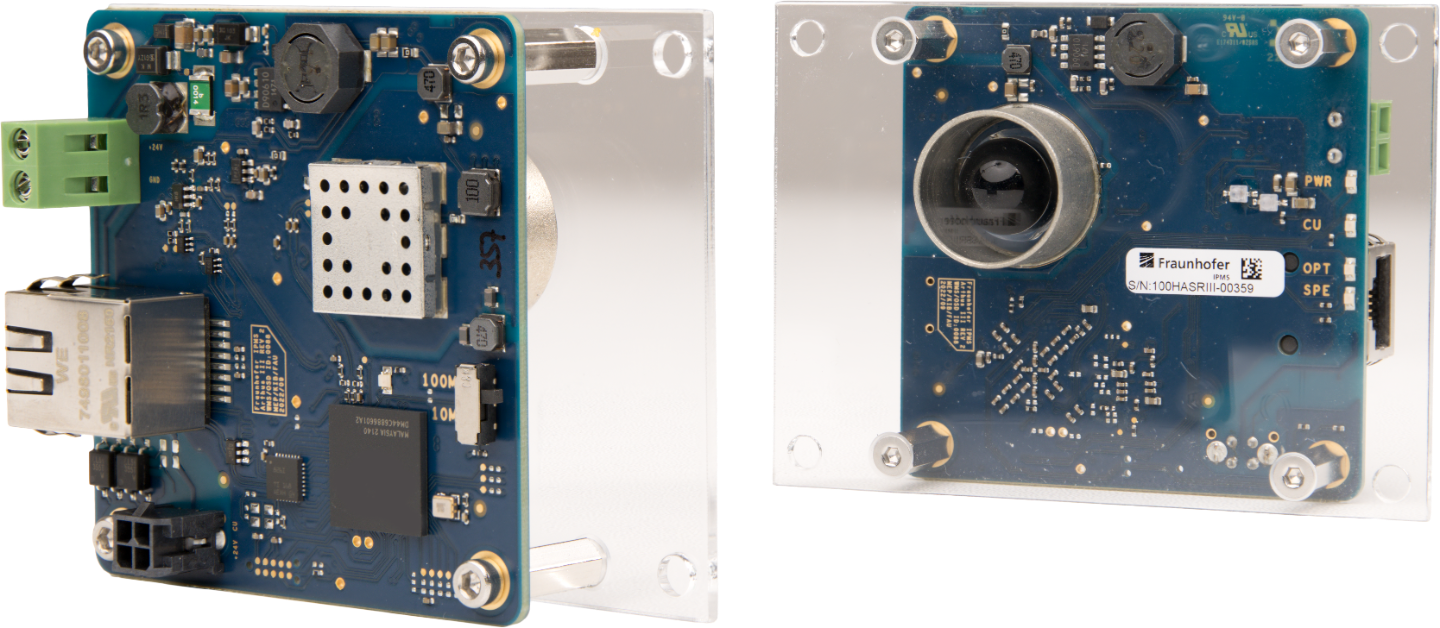

Li-Fi Arthus

Li-Fi Arthus enables bi-directional, full-duplex data transmission at 10 or 100 Mbit/s via RJ45 over short distances up to 1 meter. With an alignment tolerance of ~25 cm and optional Plexiglass front plate, it is ideal for close-range industrial applications. The device supports real-time industrial Ethernet protocols such as Profinet and EtherCAT, and offers plug-and-play integration with an Ethernet interface. Designed for safety and flexibility, it is Laser Class 1 certified and housed in a compact 85 × 45 × 65 mm enclosure.

Features

• Data rate: 10 Mbit/s and 100 Mbit/s via RJ45 connector
• Bi-directional, full-duplex
• Distance: up to 1m
• Alignment: ~25 cm
• Front plate (optional): Plexiglass
• Plug & Play
• Compatible to real-time industrial Ethernet like Profinet,
  EtherCAT, …
• Interface: Ethernet
• Laser Safety Class 1 (eye safe)
• Physical size (L x W x H): down to 85x45x65mm

Arthus III Evaluation Kit

The Li-Fi Arthus Evaluation III Kit can be used to easily replace Ethernet cables with an optical link. It works in a plug & play fashion and supports 10Mbps and 100Mbps via a RJ45 Ethernet connector.

The kit comprises:

• 2x Li-Fi Arthus Devices
• 2x CAT5 cables
• 2x 24VDC Power Supplies
• User Manual
