2D MEMS Mirror Test Successful: Fraunhofer IPMS Expands Online Product Range of MEMS Scanner Chips for Individual Configuration

Dresden, /

The modular VarioS microscanner system from the Fraunhofer Institute for Photonic Microsystems IPMS makes it possible for customers to individually configure standardized microscanners online. Even small and single orders are available at competitive prices. Following the successful test phase and effective immediately, Fraunhofer IPMS is offering resonant scanning mirrors with two perpendicular axes for light deflection. Scanning mirror technology has now been made attractive to both small and medium sized businesses – as well as for a multitude of possible applications.

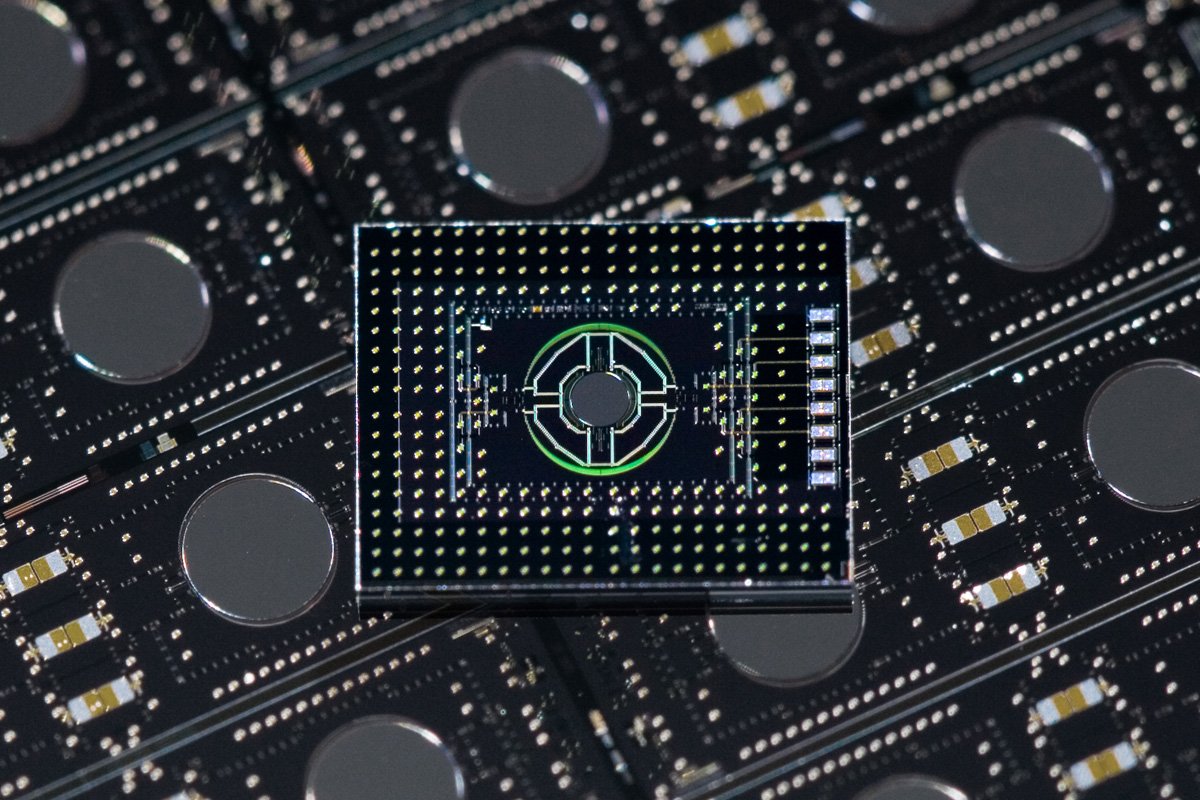

VarioS 2D Mikroscannerspiegel gehäust
VarioS 2D Mikroscannerspiegel gehäust.

MEMS scanners are the technology of choice when it comes to utilizing the principle of light deflection for object identification and characterization or image capture and projection while implementing compact systems with minimized dimensions. For many of these applications however, it is necessary to have actuators that can resonate on two axes at different frequencies. The Fraunhofer Institute for Photonic Microsystems IPMS has been developing this type of two-dimensional MEMS scanning mirrors for its clients for many years, and thus provides internationally leading microscanner technology regarding frequency range, deflection, optical characteristics and reliability.

Fraunhofer IPMS has now developed and successfully tested 2D microscanning mirrors on the VarioS modular design principle based upon a platform technology with defined interfaces, standard components and base substrates. A huge success, finds Denis Jung, Project Manager at Fraunhofer IPMS, and explains: »The VarioS wafers are pre-processed to about two thirds of the entire manufacturing process and can then be stored until they are commissioned. That makes it possible to deliver devices to customer specifications as quickly as within nine to eleven weeks, and at moderate prices. This, in turn, means that the technological barriers preventing especially small and medium-sized businesses from entering the market due to their limited research budgets can be significantly reduced«.

Inquiries about 2D MEMS scanning mirrors are simple to make on the internet at www.micro-mirrors.com. The website offers the user a configuration and ordering tool to specify the dimensions of the mirror plate, scan angle and scan frequency. If required even the dynamic flatness of the mirror plate can be specified. The software checks and lists the configurations that are technically possible and from which the user can select the chip type and batch size for a quote if desired. 2D microscanner demonstrators with mirror diameters between 0.5 and 2 mm are available starting from € 3325 and are normally ready for the customer within ten weeks upon placement of an order.
