QuINSiDa - Quantum-based infrastructure networks for safety-critical wireless data communication

QuINSiDa - Quantum-based infrastructure networks for safety-critical wireless data communication

Projekt duration: 2022 - 2025

© shutterstock (wk1003mike)

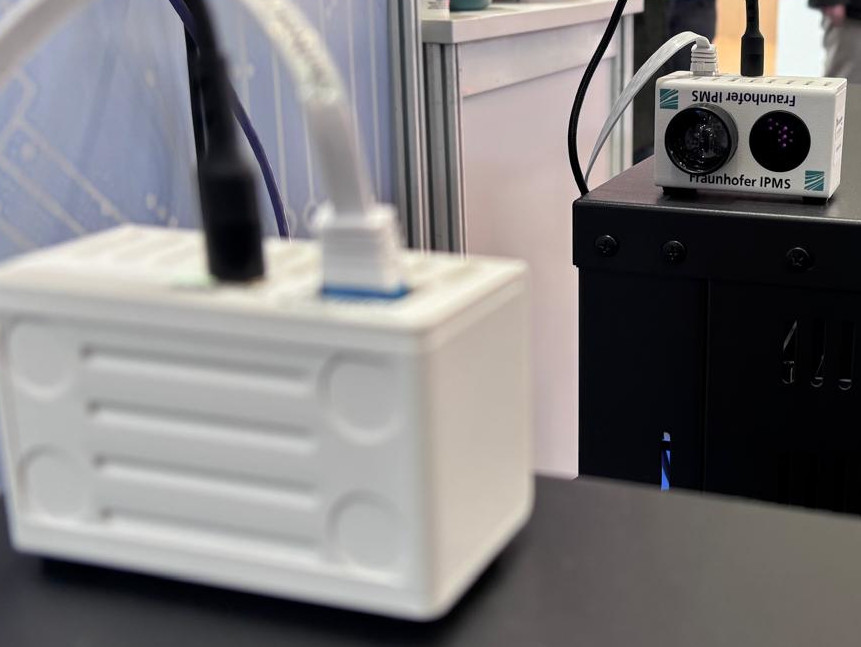

Close-up of the Li-Fi connection between the two QKD nodes
© KeeQuant
Close-up of the Li-Fi connection between the two QKD nodes

Modern quantum technology opens up many new application areas. But it also poses risks. For example, quantum computers, thanks to their enormous computational power, could undermine even the most advanced data encryption methods. To forestall this scenario, Fraunhofer IPMS and several partners, led by KEEQuant GmbH, are developing a new approach to secure optical data transmission in wireless networks using light and quantum keys.

Linking Li-Fi technology and quantum cryptography

Li-Fi technology allows users to network with each other over short distances using optical signals. Compared to the well-known Wi-Fi technology, which is based on radio waves, the optical signals do not penetrate walls and can thus be designed to cover a defined area. In addition, Li-Fi technology allows full utilization of the available spectral data bandwidth.

Independently of this, quantum key distribution (QKD) is being promoted worldwide, which makes it possible to distribute a cryptographic key whose security can be proven on the basis of information theory. In quantum key distribution, quantum states in the form of light are prepared and exchanged between the participants in the network when the keys are generated. When the quantum states are received, they are measured and post-processed to produce keys that are identical on both sides but secret to an attacker.

The QuINSiDa project is the first to combine both technologies into a "QKD over Li-Fi" system. This makes it possible to carry QKD, which has so far been more typically envisaged in the building-to-building scenario, right through to the end user.

Milestone: First steps towards fully wireless quantum-safe communication

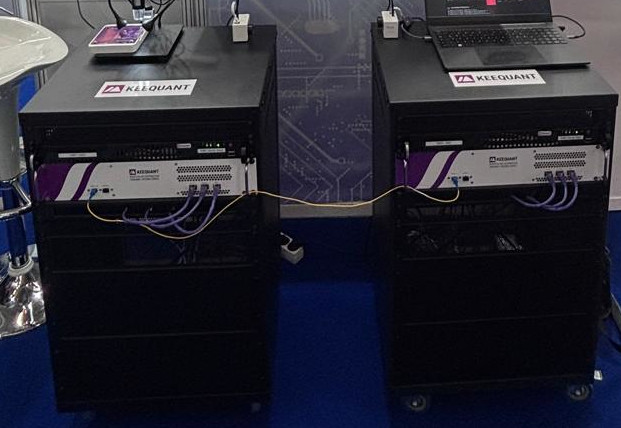

Two QKD nodes, connected by Li-Fi for transmission of the classic QKD channel and fiber optics for the quantum QKD channel
© KeeQuant
Two QKD nodes, connected by Li-Fi for transmission of the classic QKD channel and fiber optics for the quantum QKD channel
Close-up of the Li-Fi connection between the two QKD nodes
© KeeQuant
Close-up of the Li-Fi connection between the two QKD nodes

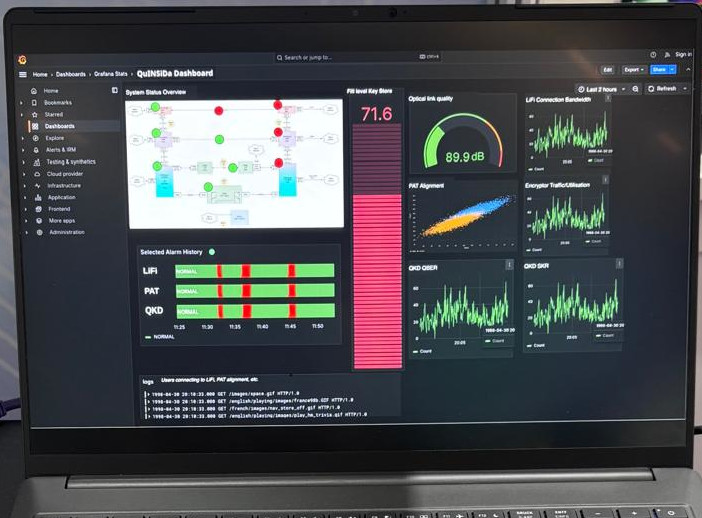

Dashboard for monitoring and control
© KeeQuant
Dashboard for monitoring and control

An interdisciplinary team of researchers and companies in Germany has demonstrated the integration of quantum key distribution (QKD) with Li-Fi technology for the first time. The demonstration was carried out as part of the BMBF-funded project “QuINSiDa” and showcased at the PMRExpo exhibition in Köln, Germany.

While QKD produces ultra-secure keys used for encrypting data, it relies on an optical line of sight connection to work – the very principle underlying Li‑Fi – making them a natural match. This fusion unlocks innovative applications that combine ultra‑high data security with the speed and efficiency of LED‑based Li‑Fi. Key applications include local quantum networks (Q‑LANs) for campuses, as well as fixed‑to‑mobile connections for airports, planes, shipyards, ships, and critical infrastructure.



Technological details

Developed by consortium partners, the key technologies include:

Li-Fi (Light Fidelity): is a wireless communication technology that utilizes light to transmit data, providing high-speed data transfer, enhanced security, and minimized interference. It is specifically designed for environments where radio frequency communication is restricted or where secure data exchange is essential. The Fraunhofer Institute IPMS in Dresden is designing these systems and provides both sender and receiver within the project.

QKD and KMS: KEEQuant GmbH in Fürth is developing a continuous‑variable quantum key distribution (CV‑QKD) system. Built on standard coherent communication fiber optics, it leverages Heisenberg’s uncertainty principle for quantum security, operates at room temperature, and fits in a standard 19″ rack. An accompanying Key Management System supplies encryption keys to applications. The project focuses on seamless system integration and protocols tailored for campus networks.

Networking Monitoring: Monitoring systems combined with meaningful dashboards are crucial for many reasons. In addition to visualizing a general overview, it is also helpful to get deep insights into the status of individual devices or the overall health of the network. QKD applications and devices are not yet widely available, especially in a fibreless version. As part of the QuINSiDa project, KeeQuant has been working on the interfaces to the QKD and KMS systems as well as to the Li-Fi and PAT systems. For the QKD connection, we have built on the ETSI QKD standards. The PMR-Expo dashboard provided by Infosim® shows a logical representation of the demo with status indicators of each device. In addition, the relevant metrics, such as key rate and error rate, were visualized as time series.

Integrating these technologies enabled a two‑node demonstration in which the classical communication channel between CV‑QKD devices - typically connected by cable - was replaced by a wireless Li‑Fi link.

BESCom GmbH, investigating these use cases, predicts that mobile high‑security data communication will play a crucial role in the future of both mobile and optical networks.

The optical fiber linking the quantum components of the two QKD systems will later be replaced by a telescope developed by Fraunhofer IPMS, enabling a fully wireless system. Moreover, project partners plan to integrate an encrypted link (Telco Tech GmbH) and an entanglement‑based QKD system (Fraunhofer IOF, Jena), laying a robust foundation for future experiments and products targeting high‑security campus networks and fixed‑to‑mobile scenarios. Further updates on the project will be communicated through the communication channels of the involved partners.



Funding acknowledgement

This project was funded by the Federal Ministry of Education and Research (BMBF) Germany under project number 16KISQ082K.
